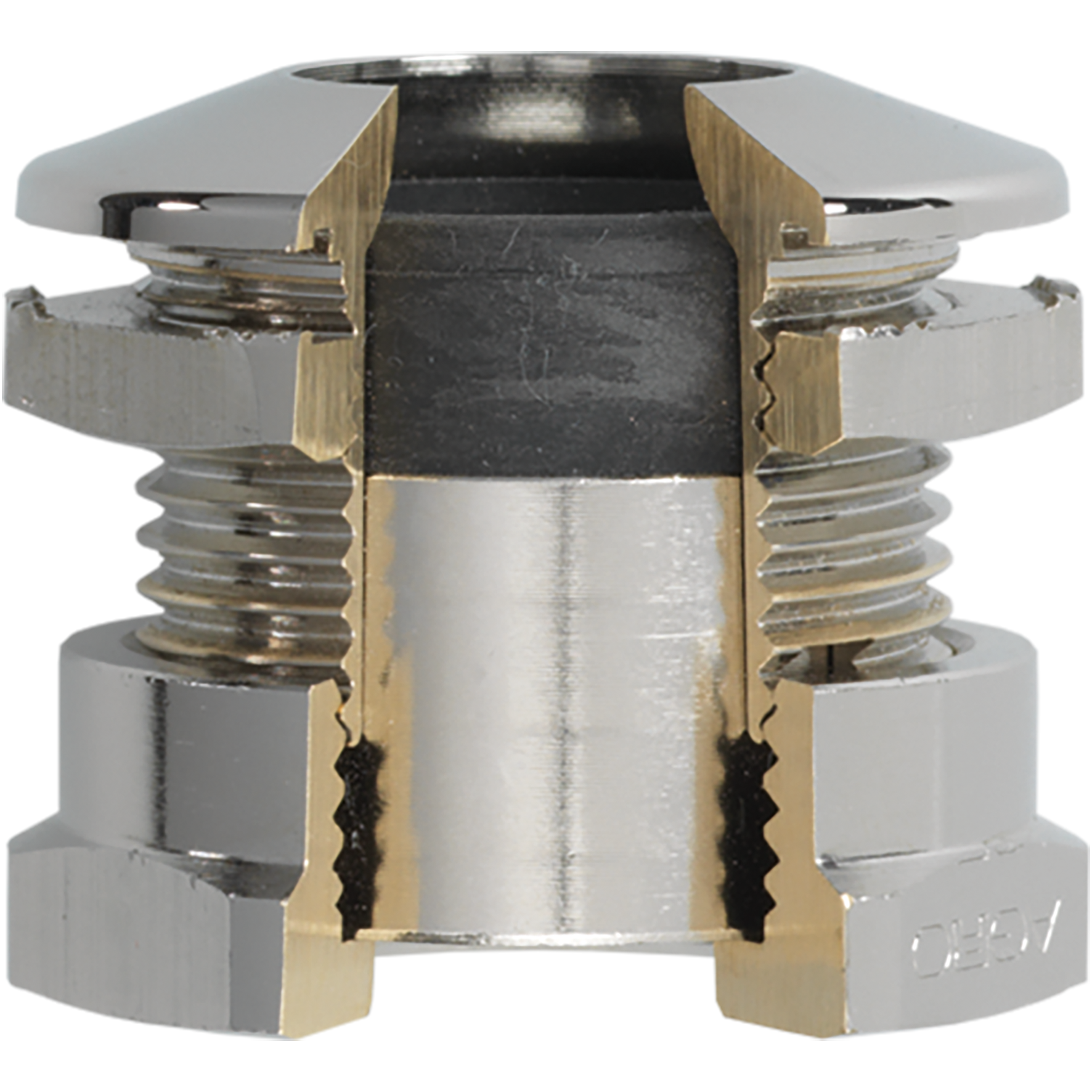

Cable gland PROGRESS ultraFLAT M16x1.5 brass, cable Ø6.5-8.0mm, black sealing
Unit of Measure
Specifications
Nominal Thread Size |
N/A 16 |
Pitch Thread |
N/A 1.5 mm |
Thread Length |
N/A 21 mm |
Wrench Width |
N/A 19 mm |
Suitable for Cable Diameter |
N/A 6.5 to 8.0 mm |
Material |
N/A Metal |
Material Quality |
N/A Brass |
Surface Protection |
N/A Nickel-Plated |
Halogen Free |
N/A Yes |
Degree of Protection |
N/A Ingress Protection (IP68) |
Shock Resistant |
N/A Yes |
Model |
N/A Straight |
With Strain Relief |
N/A Yes |
Type of Sealing |
N/A Sealing Ring |
Operating Temperature |
N/A -40 to 100 ºC |
EAN |
N/A 7611614264646 |
