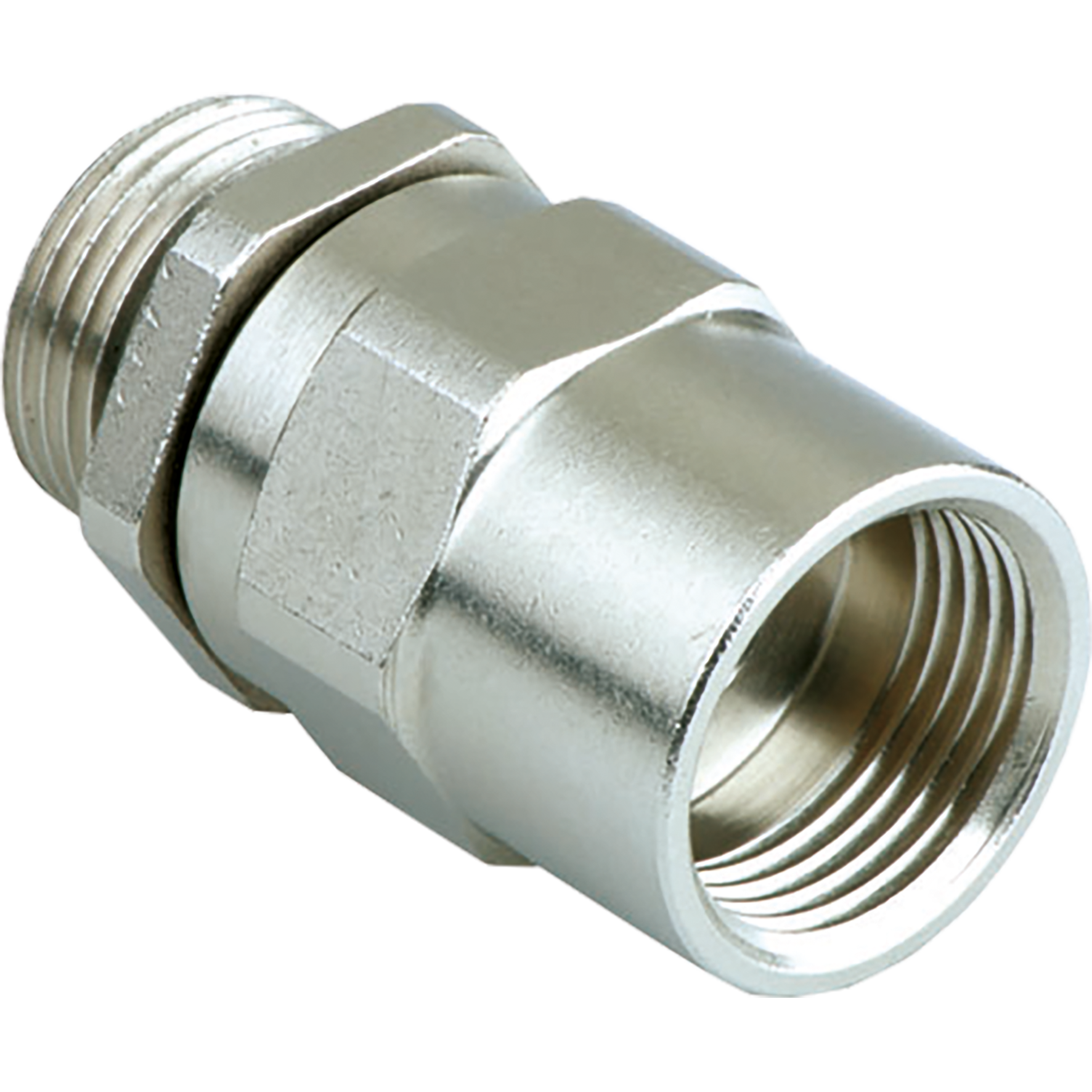

Combination EMC conduit gland M25x1.5 Application range Ø5.0-16.0mm copper braiding and Quick-connector
Unit of Measure
Specifications
Nominal Thread Size |
N/A 25 |
Pitch Thread |
N/A 1.5 mm |
Thread Length |
N/A 11 mm |
Wrench Width |
N/A 30 mm |
Suitable for Cable Diameter |
N/A 5.0 to 16.0 mm |
Material |
N/A Metal |
Material Quality |
N/A Brass |
Surface Protection |
N/A Nickel-Plated |
Halogen Free |
N/A Yes |
Degree of Protection |
N/A Ingress Protection (IP68) |
Shock Resistant |
N/A Yes |
Model |
N/A Straight |
Type of Sealing |
N/A Sealing Ring |
Operating Temperature |
N/A -40 to 100 ºC |
For Ex-Zone Gas |
N/A None |
For Ex-Zone Dust |
N/A None |
EAN |
N/A 7611614219615 |
