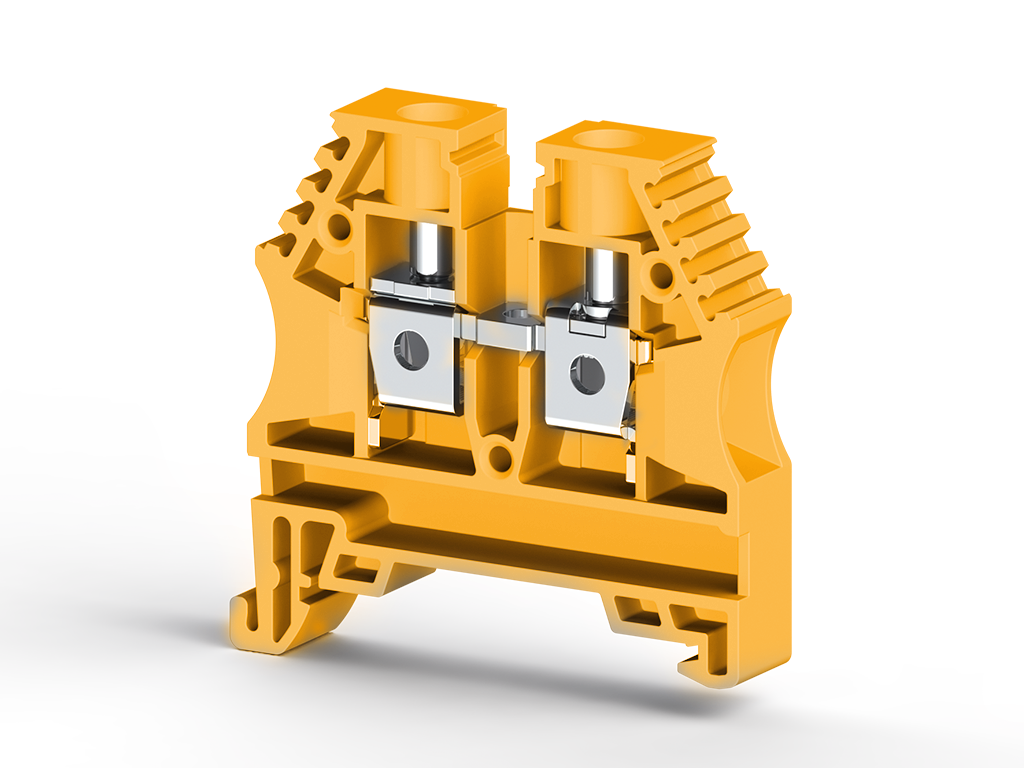

6 mm², Screw connection, Feed-through terminal block, Insulation material PA, Yellow
Unit of Measure
Specifications
Manufacturer |
N/A Klemsan |
Type Number |
N/A AVK 6 |
Supplier |
N/A Klemsan |
Order Number |
N/A 304143 |
Certification General |
N/A TSE / CE (EN 60947-7-1) |
Width |
N/A 8.00 mm |
Height |
N/A 44.20 mm |
Depth |
N/A 36.90 mm |
Total Depth |
N/A 42.50 mm |
Weight |
N/A 0.012310 kg |
Color |
N/A Yellow |
Material |
N/A Polyamide (PA 66) |
Degree of Protection |
N/A Ingress Protection (IP20) |
Cross-Section Connection Point |
N/A 6 mm² |
Cross-Section |
N/A 0.2 to 10 mm² |
Wire Size |
N/A 24 to 8 AWG |
DIN Current |
N/A 41 A |
IEC Current |
N/A 41 A |
DIN Voltage |
N/A 630 V |
IEC Voltage |
N/A 630 V |
Quantity |
N/A 100 |
