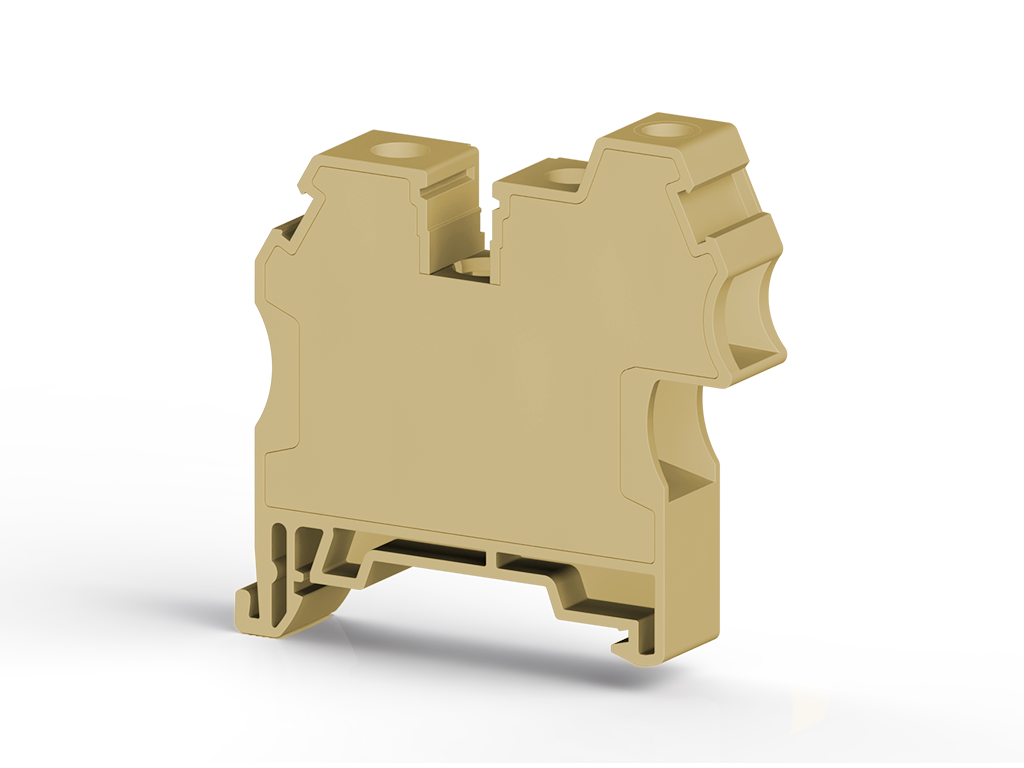

10 mm², Screw connecting, 1 In (10 mm²) 2 Out (10 mm² - 4 mm²) feed-through terminal block, Insulation material PA, Beige
Unit of Measure
Specifications
Manufacturer |
N/A Klemsan |
Type Number |
N/A AVK 10 RD 4 |
Supplier |
N/A Klemsan |
Order Number |
N/A 304280 |
Certification General |
N/A CE (EN 60947-7-1) |
Width |
N/A 10.00 mm |
Height |
N/A 51.37 mm |
Depth |
N/A 45.41 mm |
Total Depth |
N/A 51.01 mm |
Weight |
N/A 0.012200 kg |
Color |
N/A Beige |
Material |
N/A Polyamide (PA 66) |
Degree of Protection |
N/A Ingress Protection (IP20) |
Cross-Section Connection Point |
N/A 10 mm² |
Cross-Section |
N/A 0.5 to 16 mm² |
Wire Size |
N/A 20 to 6 AWG |
DIN Current |
N/A 57 A |
IEC Current |
N/A 57 A |
DIN Voltage |
N/A 800 V |
IEC Voltage |
N/A 800 V |
Quantity |
N/A 60 |
