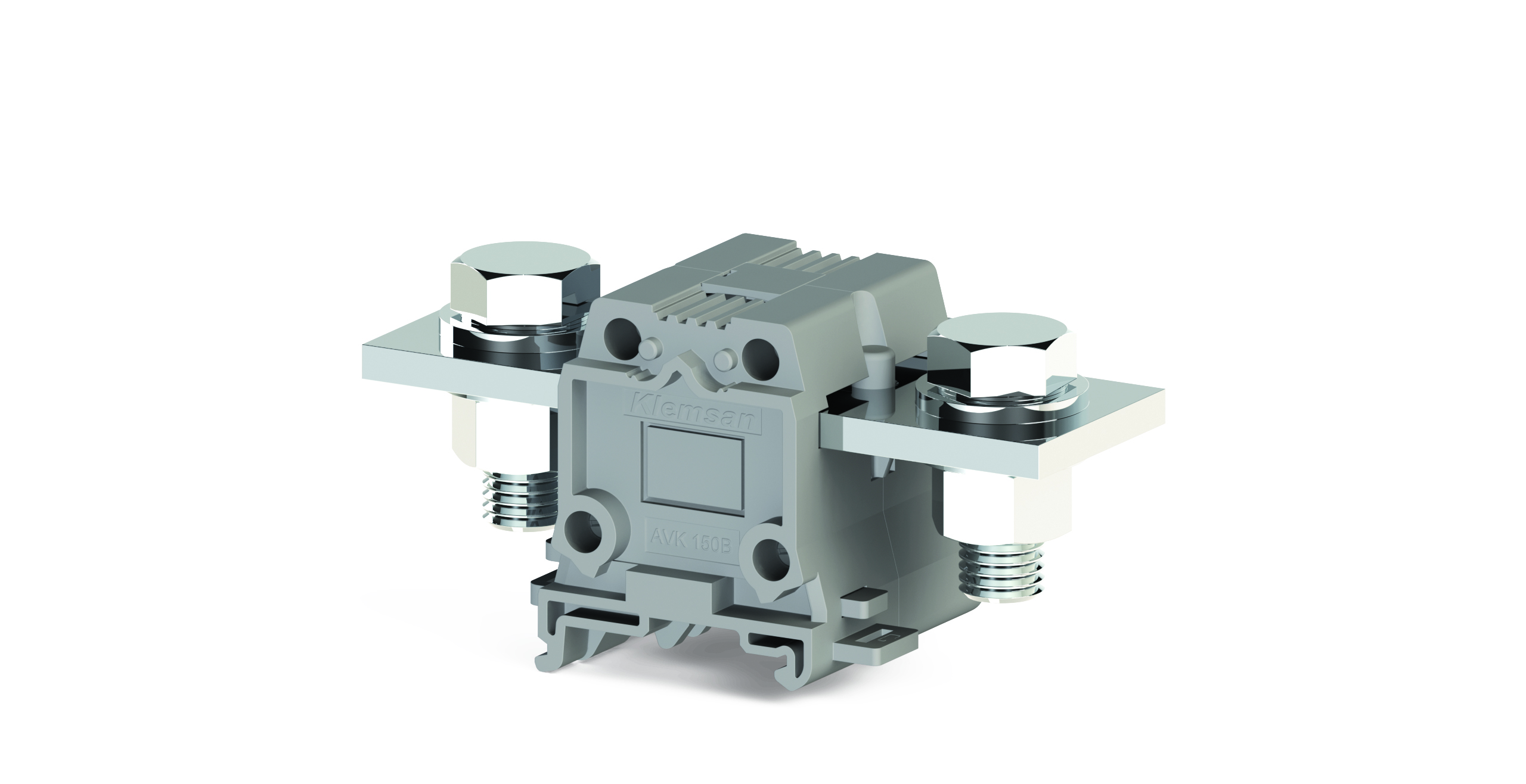

150 mm², Hex head bolt connection, Insulated conductor connected feed-through terminal, Insulation material PA, Gray
Unit of Measure
Specifications
Manufacturer |
N/A Klemsan |
Type Number |
N/A AVK 150 B |
Supplier |
N/A Klemsan |
Order Number |
N/A 304310 |
Certification General |
N/A CE (EN 60947-7-1) |
Width |
N/A 48.00 mm |
Height |
N/A 246.00 mm |
Depth |
N/A 67.55 mm |
Total Depth |
N/A 74.62 mm |
Weight |
N/A 0.265230 kg |
Color |
N/A Gray |
Material |
N/A Polyamide (PA 66) |
Degree of Protection |
N/A Ingress Protection (IP10) |
Cross-Section Connection Point |
N/A 150 mm² |
Cross-Section |
N/A 35 to 150 mm² |
Wire Size |
N/A 2 AWG300 KCMIL |
DIN Current |
N/A 309 A |
IEC Current |
N/A 309 A |
DIN Voltage |
N/A 1000 V |
IEC Voltage |
N/A 1000 V |
Quantity |
N/A 4 |
