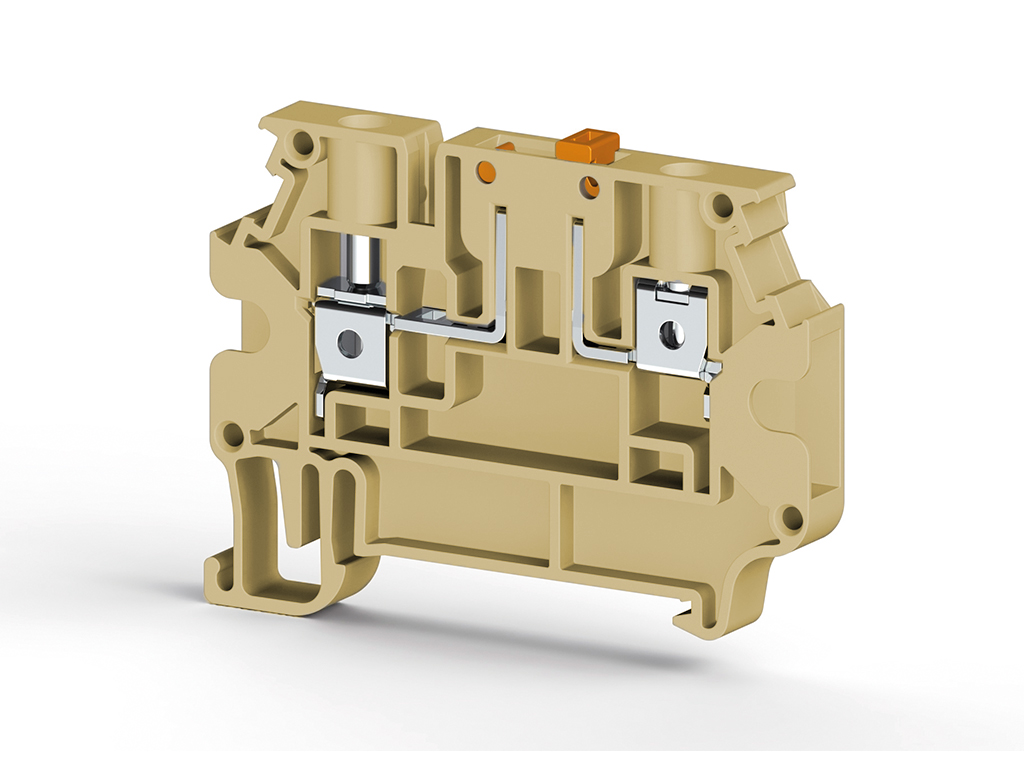

4 mm²,Screw connection, Knife disconnect terminal block, Insulation material PA, Beige
Unit of Measure
Specifications
Manufacturer |
N/A Klemsan |
Type Number |
N/A AVK 4A |
Supplier |
N/A Klemsan |
Order Number |
N/A 304389 |
Certification General |
N/A CE (EN 60947-7-1) |
Width |
N/A 6 mm |
Height |
N/A 57.50 mm |
Depth |
N/A 36.30 mm |
Total Depth |
N/A 42.65 mm |
Weight |
N/A 0.013110 kg |
Color |
N/A Beige |
Material |
N/A Polyamide (PA 66) |
Degree of Protection |
N/A Ingress Protection (IP20) |
Cross-Section Connection Point |
N/A 4 mm² |
Cross-Section |
N/A 0.2 to 6 mm² |
Wire Size |
N/A 24 to 10 AWG |
DIN Current |
N/A 20 A |
IEC Current |
N/A 20 A |
DIN Voltage |
N/A 500 V |
IEC Voltage |
N/A 500 V |
Quantity |
N/A 50 |
