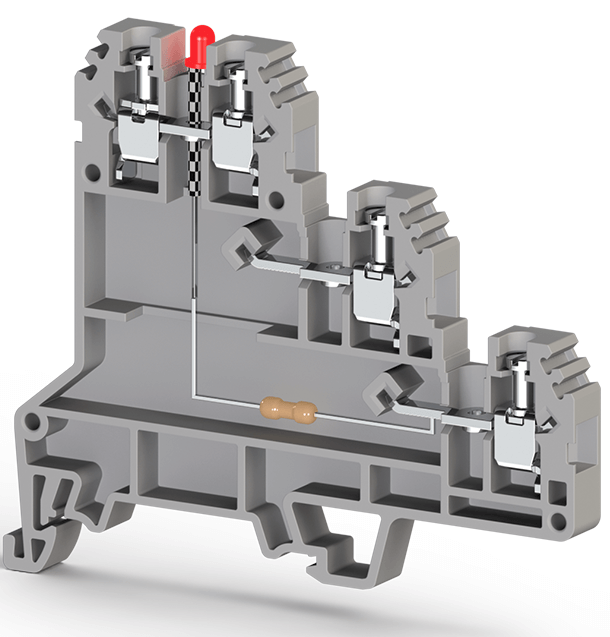

2.5 mm², Screw Connection, Three-level sensor terminal block with LED, Insulation material PA, Gray
Unit of Measure
Specifications
Manufacturer |
N/A Klemsan |
Type Number |
N/A PUK 3 SLD (NPN) |
Supplier |
N/A Klemsan |
Order Number |
N/A 324419 |
Certification General |
N/A CE (EN 60947-7-1 ) |
Width |
N/A 6 mm |
Height |
N/A 74.30 mm |
Depth |
N/A 58.70 mm |
Total Depth |
N/A 64.50 mm |
Weight |
N/A 0.015550 kg |
Color |
N/A Gray |
Material |
N/A Polyamide (PA 66) |
Degree of Protection |
N/A Ingress Protection (IP20) |
Cross-Section Connection Point |
N/A 2.5 mm² |
Cross-Section |
N/A 0.2 to 4 mm² |
Wire Size |
N/A 24 to 12 AWG |
DIN Current |
N/A 24 A |
IEC Current |
N/A 24 A |
DIN Voltage |
N/A 24 V |
IEC Voltage |
N/A 24 V |
Quantity |
N/A 20 |
