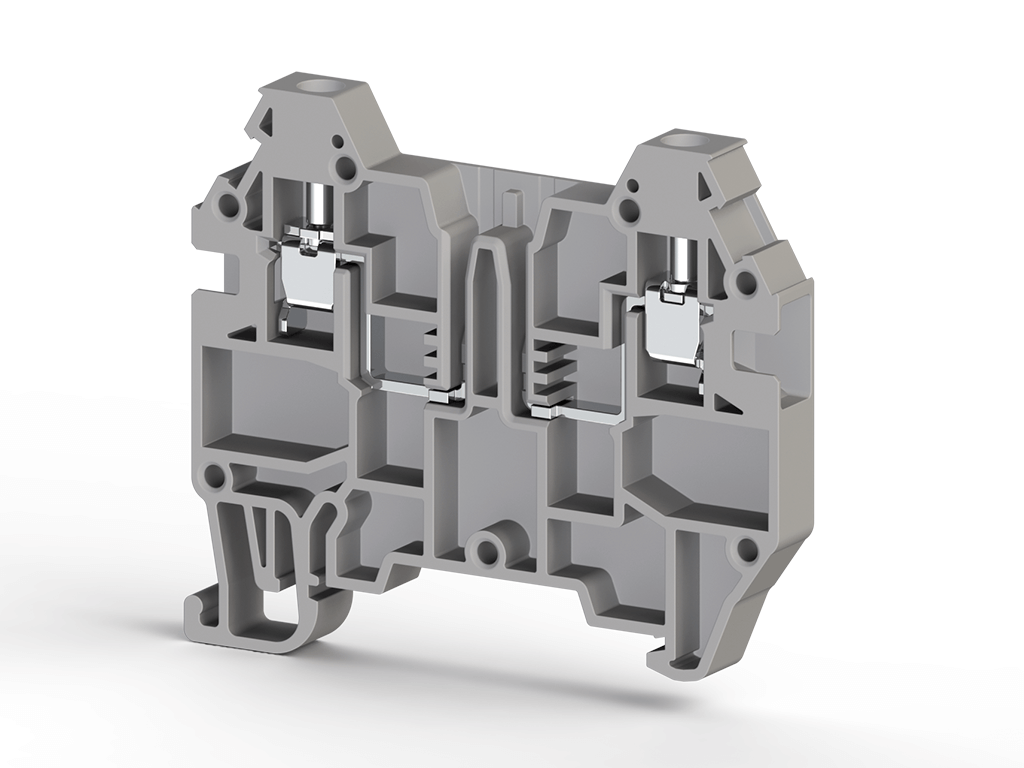

2.5 mm², Screw connection, Functional terminal with socket plug-in, Insulation material PA, Gray
Unit of Measure
Specifications
Manufacturer |
N/A Klemsan |
Type Number |
N/A AVK 2,5 F |
Supplier |
N/A Klemsan |
Order Number |
N/A 324929 |
Certification General |
N/A CE (EN 60947-7-1) |
Width |
N/A 6 mm |
Height |
N/A 57.83 mm |
Depth |
N/A 42.55 mm |
Total Depth |
N/A 49.05 mm |
Weight |
N/A 0.010500 kg |
Color |
N/A Gray |
Material |
N/A Polyamide (PA 66) |
Degree of Protection |
N/A Ingress Protection (IP20) |
Cross-Section Connection Point |
N/A 2.5 mm² |
Cross-Section |
N/A 0.2 to 4 mm² |
Wire Size |
N/A 24 to 12 AWG |
DIN Current |
N/A 16 A |
IEC Current |
N/A 16 A |
DIN Voltage |
N/A 400 V |
IEC Voltage |
N/A 400 V |
Quantity |
N/A 80 |
