Catalog

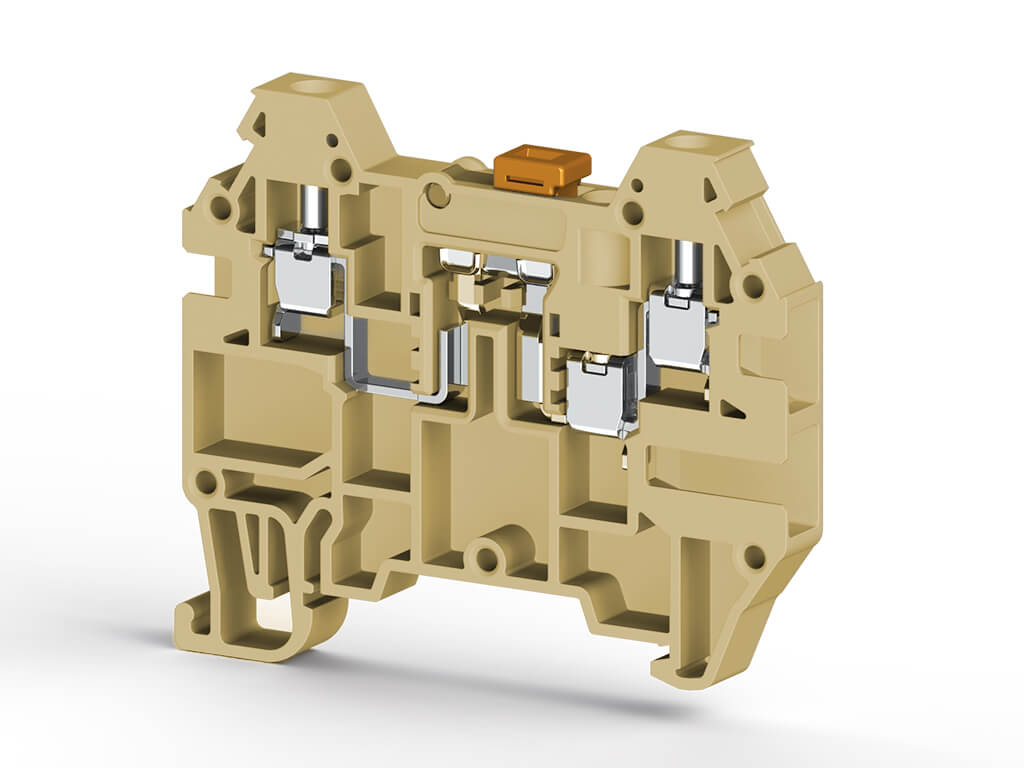

2.5 mm², Screw connection, 1 In 2 Out disconnect terminal block, Insulation material PA, Beige
Unit of Measure

Specifications

Manufacturer

N/A Klemsan

Type Number

N/A AVK 2,5 EA

Supplier

N/A Klemsan

Order Number

N/A 324940

Certification General

N/A CE (EN 60947-7-3 )

Width

N/A 6 mm

Height

N/A 57.83 mm

Depth

N/A 42.55 mm

Total Depth

N/A 49.05 mm

Weight

N/A 0.012000 kg

Color

N/A Beige

Material

N/A Polyamide (PA 66)

Degree of Protection

N/A Ingress Protection (IP20)

Cross-Section Connection Point

N/A 2.5 mm²

Cross-Section

N/A 0.2 to 4 mm²

Wire Size

N/A 24 to 12 AWG

DIN Current

N/A 16 A

IEC Current

N/A 16 A

DIN Voltage

N/A 400 V

IEC Voltage

N/A 400 V

Quantity

N/A 80
