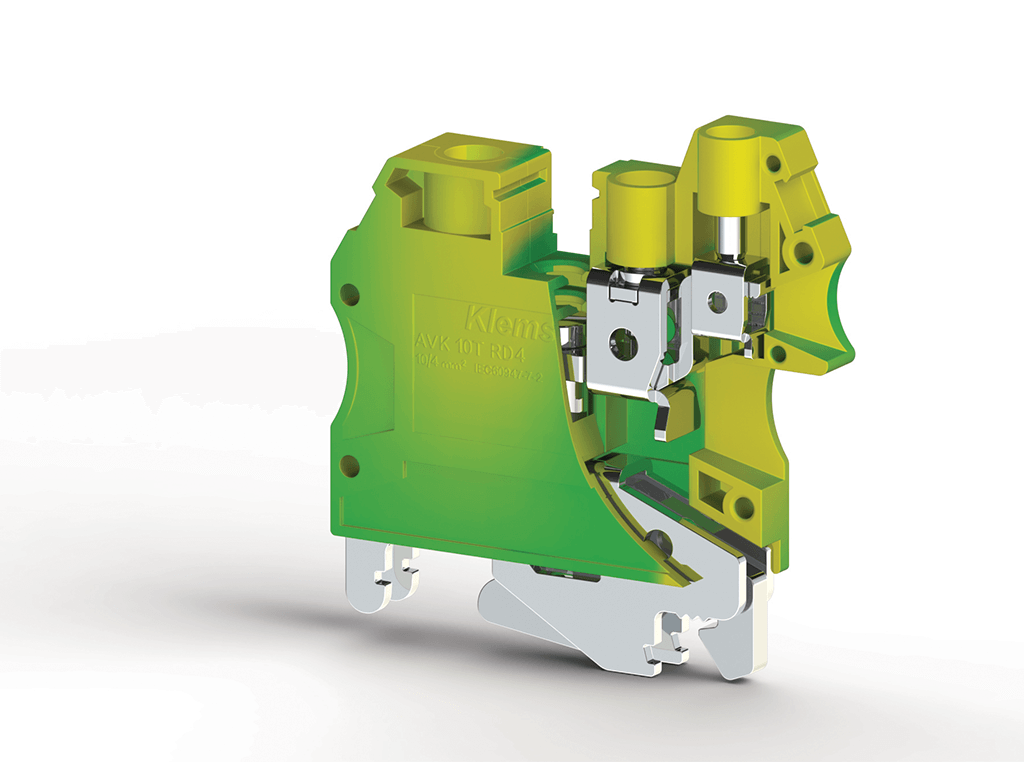

10 mm², Screw connection, 1 In (10 mm²) 2 Out (10 mm² - 4 mm²) earth terminal block, Insulation material PA, Yellow-Green
Unit of Measure
Specifications
Manufacturer |
N/A Klemsan |
Type Number |
N/A AVK 10 T RD 4 |
Supplier |
N/A Klemsan |
Order Number |
N/A 334230 |
Certification General |
N/A CE (EN 60947-7-2 ) |
Width |
N/A 10.00 mm |
Height |
N/A 49.37 mm |
Depth |
N/A 45.34 mm |
Total Depth |
N/A 51.44 mm |
Weight |
N/A 0.012200 kg |
Color |
N/A Yellow-Green |
Material |
N/A Polyamide (PA 66) |
Degree of Protection |
N/A Ingress Protection (20/PE) |
Cross-Section Connection Point |
N/A 10 to 4 mm² |
Cross-Section |
N/A 0.5 to 16 mm² |
Wire Size |
N/A 20 to 6 AWG |
Quantity |
N/A 60 |
