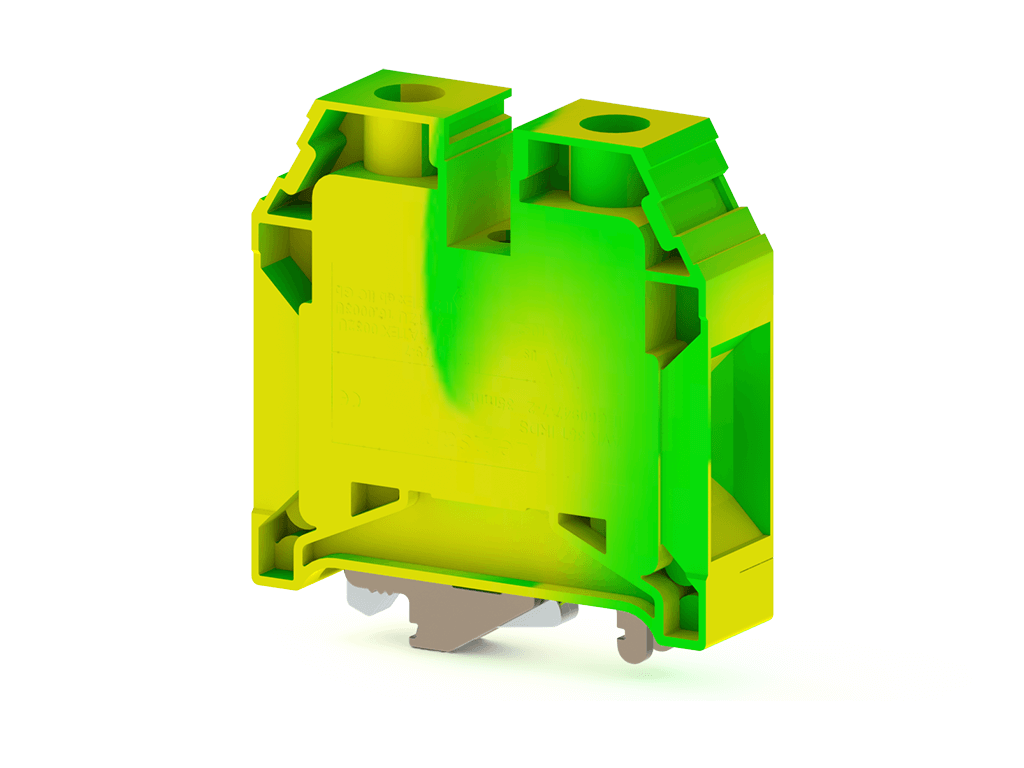

35 mm², Hex socket head screw connection, Earth terminal block, Insulation material PA, Yellow-Green
Unit of Measure
Specifications
Manufacturer |
N/A Klemsan |
Type Number |
N/A AVK 35T IRDS |
Supplier |
N/A Klemsan |
Order Number |
N/A 334250 |
Certification General |
N/A CE (EN 60947-7-2 ) |
Width |
N/A 16.00 mm |
Height |
N/A 62.00 mm |
Depth |
N/A 57.60 mm |
Total Depth |
N/A 64.55 mm |
Weight |
N/A 0.089710 kg |
Color |
N/A Yellow-Green |
Material |
N/A Polyamide (PA 66) |
Degree of Protection |
N/A Ingress Protection (20/PE) |
Cross-Section Connection Point |
N/A 35 mm² |
Cross-Section |
N/A 6 to 50 mm² |
Wire Size |
N/A 10 to 2 AWG |
Quantity |
N/A 50 |
