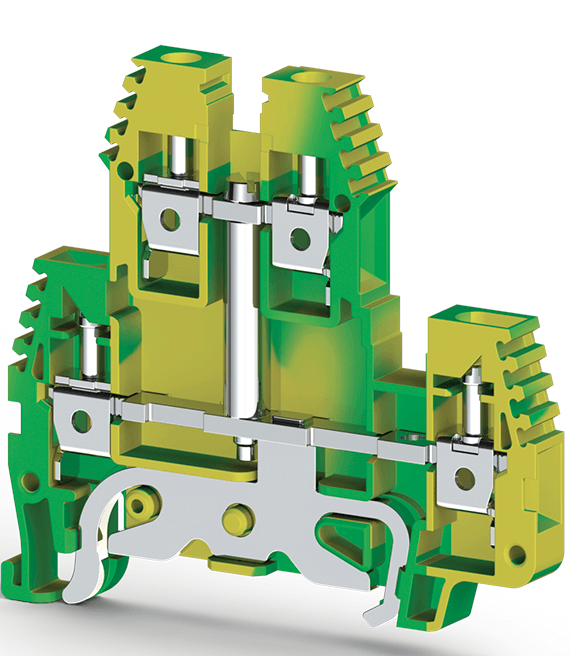

4 mm², Screw connection, Double-deck earth terminal block with 4 conductors, Insulation material PA, Yellow-Green
Unit of Measure
Specifications
Manufacturer |
N/A Klemsan |
Type Number |
N/A PIK 4 NT |
Supplier |
N/A Klemsan |
Order Number |
N/A 336570 |
Certification General |
N/A CE (EN 60947-7-2) |
Width |
N/A 6 mm |
Height |
N/A 64.00 mm |
Depth |
N/A 53.70 mm |
Total Depth |
N/A 60.00 mm |
Weight |
N/A 0.025800 kg |
Color |
N/A Yellow-Green |
Material |
N/A Polyamide (PA 66) |
Degree of Protection |
N/A Ingress Protection (20/PE) |
Cross-Section Connection Point |
N/A 4 mm² |
Cross-Section |
N/A 0.2 to 6 mm² |
Wire Size |
N/A 24 to 10 AWG |
Quantity |
N/A 100 |
