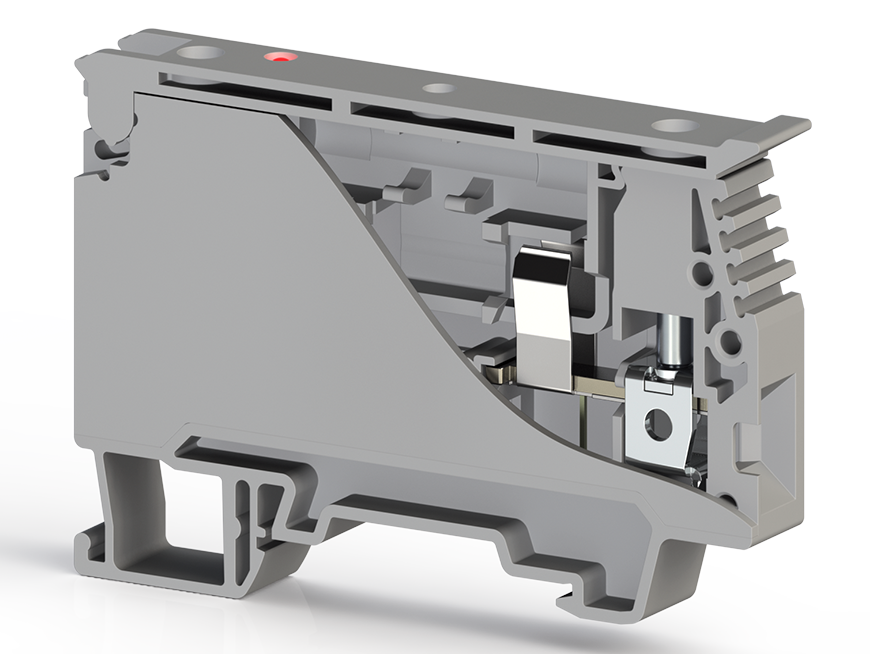

6 mm², Screw connection, Fuse terminal block (6,35x31,75) with 24V AC LED, Insulation material PA, Gray
Unit of Measure
Specifications
Manufacturer |
N/A Klemsan |
Type Number |
N/A ASK 4 LD |
Supplier |
N/A Klemsan |
Order Number |
N/A 351719 |
Certification General |
N/A CE (EN 60947-7-3) |
Width |
N/A 10.00 mm |
Height |
N/A 74.40 mm |
Depth |
N/A 43.90 mm |
Total Depth |
N/A 50 mm |
Weight |
N/A 0.028000 kg |
Color |
N/A Gray |
Material |
N/A Polyamide (PA 66) |
Degree of Protection |
N/A Ingress Protection (IP20) |
Cross-Section Connection Point |
N/A 6 mm² |
Cross-Section |
N/A 0.34 to 10 mm² |
Wire Size |
N/A 22 to 8 AWG |
DIN Current |
N/A 6.3 A |
IEC Current |
N/A 6.3 A |
DIN Voltage |
N/A 24 V |
IEC Voltage |
N/A 24 V |
Quantity |
N/A 20 |
