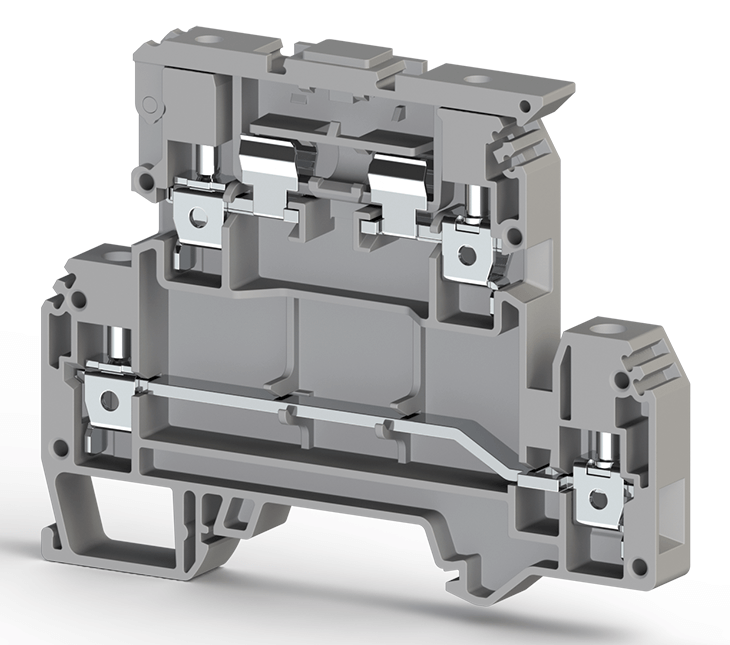

4 mm², Screw Connection, Double deck 2 In 2 Out fuse terminal block (5x20-25), Insulation material PA, Gray
Unit of Measure
Specifications
Manufacturer |
N/A Klemsan |
Type Number |
N/A AVK 4 FS |
Supplier |
N/A Klemsan |
Order Number |
N/A 353309 |
Certification General |
N/A CE (EN 60947-7-1 / 60947-7-3) |
Width |
N/A 8.00 mm |
Height |
N/A 82.50 mm |
Depth |
N/A 58.90 mm |
Total Depth |
N/A 65.00 mm |
Weight |
N/A 0.026200 kg |
Color |
N/A Gray |
Material |
N/A Polyamide (PA 66) |
Degree of Protection |
N/A Ingress Protection (IP20) |
Cross-Section Connection Point |
N/A 4 mm² |
Cross-Section |
N/A 0.2 to 6 mm² |
Wire Size |
N/A 24 to 10 AWG |
DIN Current |
N/A 32 A |
DIN Voltage |
N/A 500 V |
Quantity |
N/A 50 |
