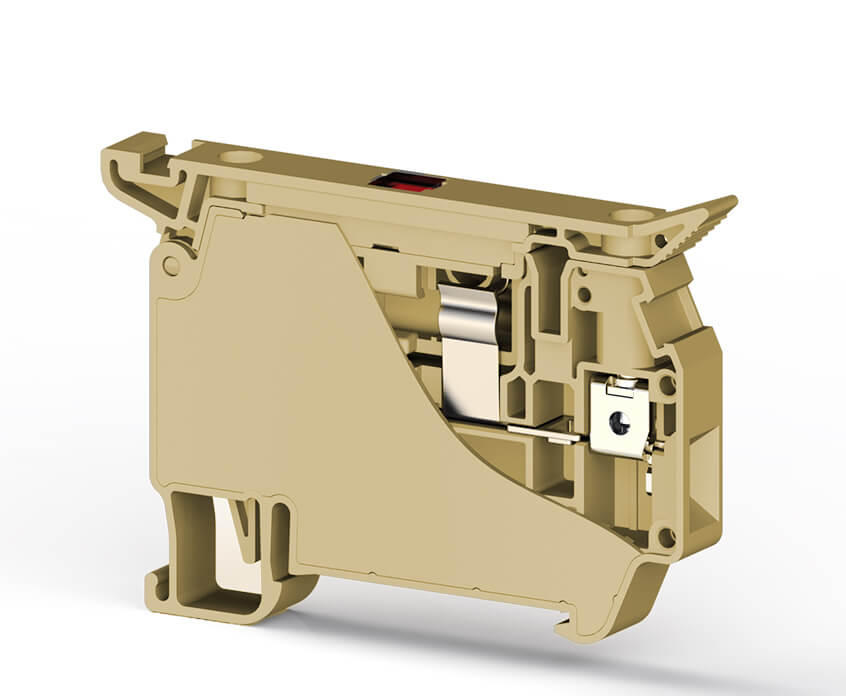

4 mm², Screw connection, Fuse terminal block (5x50-25) with 220V LED, Insulation material PA, Beige
Unit of Measure
Specifications
Manufacturer |
N/A Klemsan |
Type Number |
N/A ASK 5 LD |
Supplier |
N/A Klemsan |
Order Number |
N/A 353430 |
Certification General |
N/A CE (EN 60947-7-3) |
Width |
N/A 8.00 mm |
Height |
N/A 69.60 mm |
Depth |
N/A 40.80 mm |
Total Depth |
N/A 47.15 mm |
Weight |
N/A 0.019540 kg |
Color |
N/A Beige |
Material |
N/A Polyamide (PA 66) |
Degree of Protection |
N/A Ingress Protection (IP20) |
Cross-Section Connection Point |
N/A 4 mm² |
Cross-Section |
N/A 0.2 to 6 mm² |
Wire Size |
N/A 24 to 10 AWG |
DIN Current |
N/A 10 A |
IEC Current |
N/A 10 A |
DIN Voltage |
N/A 24 V |
IEC Voltage |
N/A 24 V |
Quantity |
N/A 50 |
