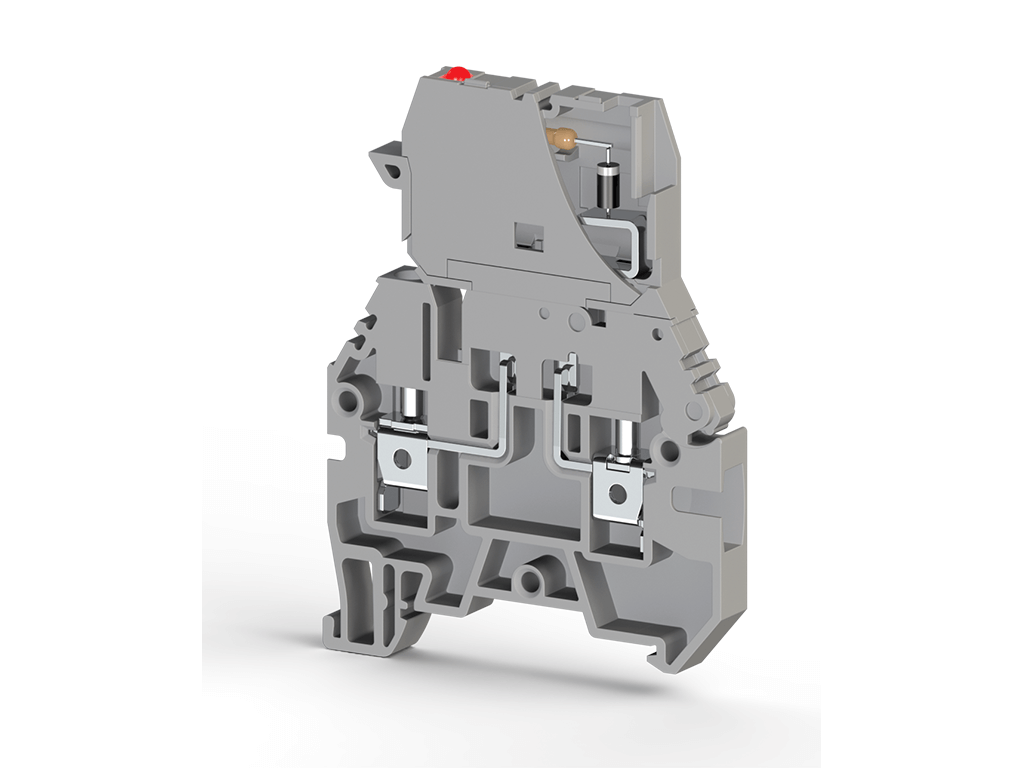

4 mm², Screw connection, Disconnect terminal block with fuse (5x20-25) and 48V DC LED, Insulation material PA, Grid
Unit of Measure
Specifications
Manufacturer |
N/A Klemsan |
Type Number |
N/A ASK 3 MLD |
Supplier |
N/A Klemsan |
Order Number |
N/A 355329 |
Certification General |
N/A CE (EN 60947-7-3) |
Width |
N/A 6.20 mm |
Height |
N/A 54.00 mm |
Depth |
N/A 65.00 mm |
Total Depth |
N/A 71.2 mm |
Weight |
N/A 0.018000 kg |
Color |
N/A Gray |
Material |
N/A Polyamide (PA 66) |
Degree of Protection |
N/A Ingress Protection (IP20) |
Cross-Section Connection Point |
N/A 4 mm² |
Cross-Section |
N/A 0.2 to 6 mm² |
Wire Size |
N/A 24 to 10 AWG |
DIN Current |
N/A 10 A |
IEC Current |
N/A 10 A |
DIN Voltage |
N/A 48 V |
IEC Voltage |
N/A 48 V |
Quantity |
N/A 30 |
